Cable Sleeve UV Laser Engraving and Cutting System

Cable Sleeve UV Laser Engraving and Cutting System

Item No.: SST-A-005

  • For cable sleeve/cable marker/wire
  • High-speed marking, Half / entire cutting;

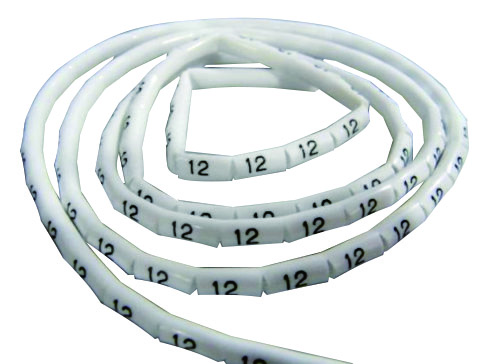

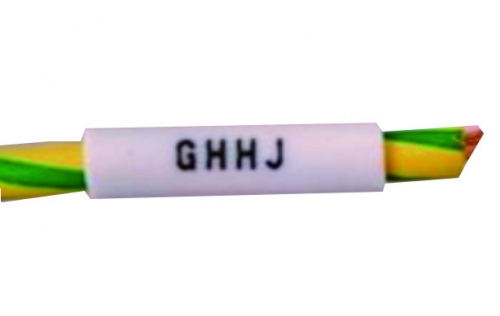

Cable Sleeve / Cable Marker/ Wire Ultraviolet Laser Marking and Cutting Machine can be applied in PVC cable sleeve, heat-shrinkable tube,self adhesive label.

It is widely used in electrical control and distribution equipment, secondary wire marker, heatshrink label.It is a special and advanced marking machine, not only for eclectic controlling and distributing equipment ,but for comprehensive wiring and labeling.

The demand of distinguishing marks of wire in the power industry such as power station, electrical equipment factory, substation can be fully met.

Cable Sleeve/ Cable Marker/ Wire is available;

Long service life, saving consumables;

High-speed marking, Half / entire cutting, various plastic materials available;

Numbers,characters and symbols and various symbols printable;

Laser power: 3W/5W
Laser wavelength: 355nm
Q-switch frequency : 20KHZ-100KHZ
Marking field: 100*100mm/160*160mm
Minimum line width: ≤0.02mm
Minimum character: 0.1mm
Marking speed : 0~7000m/s
Cooling system : Air/water cooling
Software: Samlight/BJJCZ
Cutting size : 5-100mm
Marking and cutting speed : ≤5000mm/s
Marking depth : ≤0.4mm
Repeating positioning precision : +0.02mm
Cutting alternatives: Half/entire wire cutting supported
Input power : 220VAC/50HZ/60HZ 10A
Power of machine : ≤1000W
Machine size: 1000*880*1450mm
